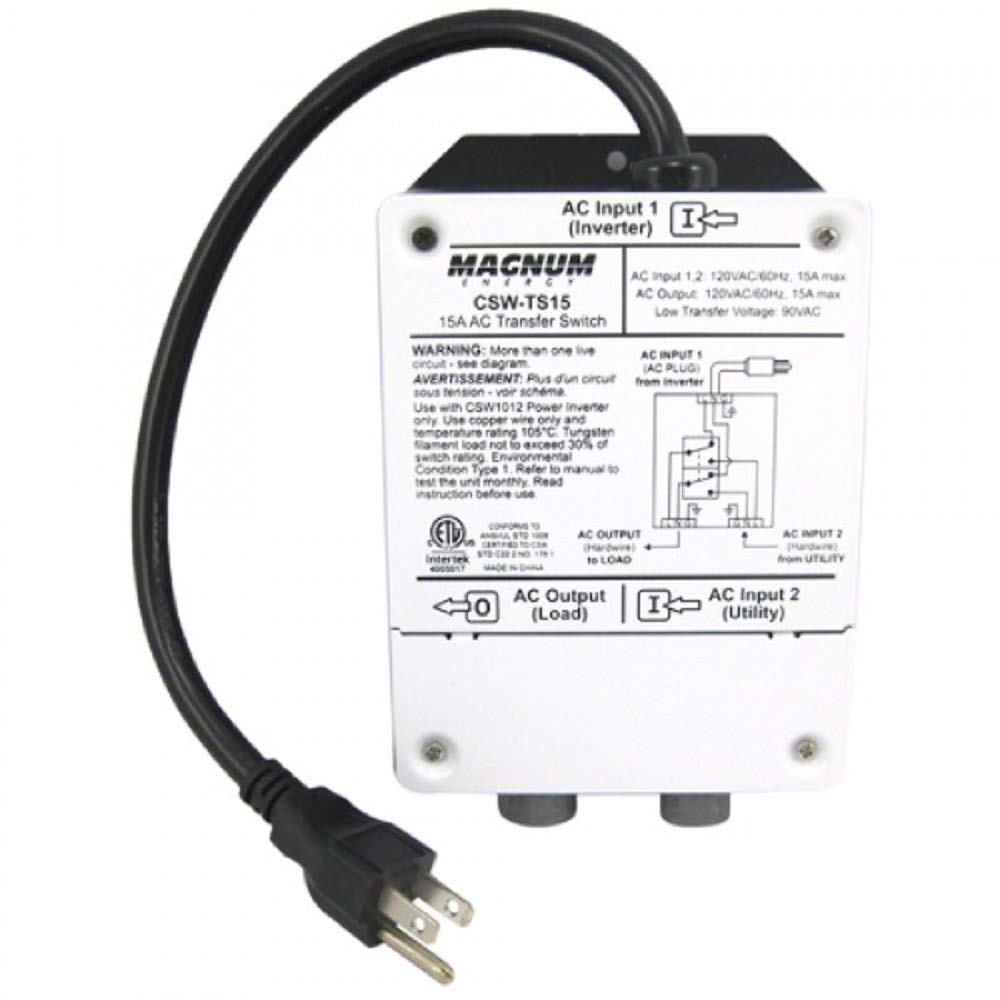

Magnum CSW-TS15 15 Amp Transfer Switch - Manual Generator Power Transfer for Home & RV Emergency Backup

CSW Transfer Switch 15 A Transfer Switch Used to automatically switch AC load connections between utility/ generator power and the AC output AC Input 1 (Inverter) Pure Sinewave 120VAC/60Hz (15A max) AC Input 2 (Utility) 120VAC/60Hz (15A max) AC Output (Load) 120VAC/60Hz (15A max) Low Transfer Voltage 90VAC Transfer Time 80mSec Environmental Condition TYPE 1 (indoor only) Load Current ≤15 Amps continuous; Tungsten fi lament load not to exceed 30% of switch rating (4.5 AAC) Compliance UL STD 1008/CSA STD C22.2 No.178-1, FCC Class B Unit Dimensions 6.6 x 4.3 x 1.8 (inches) / 168 x 110 x 46 (mm) Ship Dimensions 9.6 x 7.3 x 2.4 (inches) / 243 x 186 x 62 (mm) Unit Weight 1.8 lbs (0.8kg) Ship Weight 2.2 lbs (1.0kg)
